KHB :

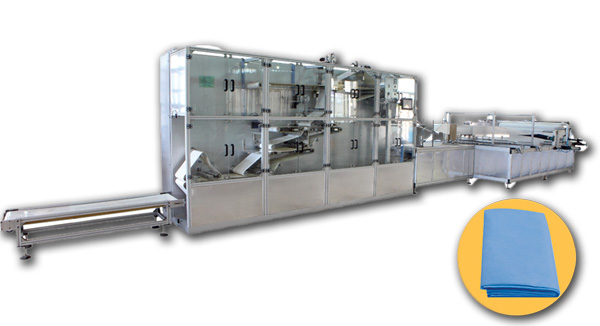

NON WOVEN BED SHEET FOLDING MACHINE |
|
|
 |
 |
| Function : |
- Equipment requirements: The device can process all kinds of spun lace non-woven, hot air fabric, hot-rolled fabric; acupuncture cloth, spun bond fabric, SMS, paper-plastic and other raw material.
- Folded width longitudinally arbitrary adjustable, the product Cutting Length can be adjustable between 300-25000mm, length error + 1mm.
- Transverse folding: one-half, one-third, one-quarter, one-sixth, one-eighth.
- The machine adopts the cylinder to promote the material and tension control automatically, without manual operation.
- All the drives use the imported servo motor, high precision.
- Touch screen control, only need to enter the data can change the specs, easy to operate.
|
| |
| Specification : |
| Power Supply |
380V50HZ |
| Power |
8.5KW |
| Speed |
0-25 Pcs / min |
| Dimension (in mm) |
10300*2400*2150mm |
| Weight |
4000kg* |
|
|
|
|
