KH-1600-2400-3200 :
FULLY AUTOMATIC NON WOVEN FABRIC PRODUCTION LINE |
|
|
 |
 |
- This production line is filament polypropylene fiber spun bonded non-woven fabric equipment.
- Its raw material is polypropylene (PP), take the principle of spinning man-made fibers, during polymer filature, continuous filament is extended into fiber, during which is finished by mechanical hot pressing.
- The Machine assembly we adopt is now advanced veneer integer slot air flow draw technology; the whole process from material feeding to cloth output is automatic control short production flow, high working efficiency.
- The non-woven fabric we produce has high strength, good softness, inequity, actinium-proof, corrosion resistance, high-level draw strength and elongation rate.
- In addition, this production line can produce non-woven fabrics of different color, different Grams, different lines according to uses demand.
- Max. width : 1.6m, 2.4m, 3.2m
- Lines on non-woven fabric: dots, cross lines, straight lines.
|
 |

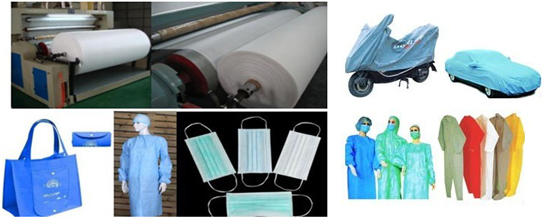

| Application : (FABRIC USAGE) : |
Medical Protect
- Surgical gown cap, patient clothes, bed sheet, pillow covers, face mask, Glover, diaper,
Shoe cover, curtains, etc.
Sanitary and Health
- Baby diaper, feminine hygiene, hygiene pad, baby training trouser, incontinence pads etc,
Cover of the high absorbent material after hydrophilic treatment, diaper edge for preventing
Leaking, diaper backing after composite with other material etc
Packing and Industry
- Cover tree, cope cover, garden cover
|
 |
| Technical Advantage : |
- The whole line is well-structured and easy to operate.
- The whole line is highly automated
- Control elements are of well-know make, high performance and reliable technologies.
- The whole line are controlled by PLC and operated with touch-screen.
- The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customer's requirement.
|
| Production Process : |

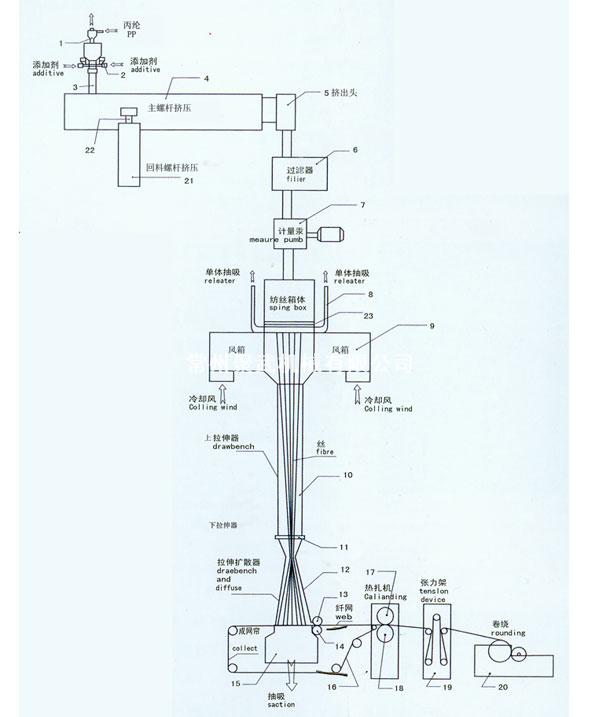

| Raw material->Pellet feeding->Melting and Extruding->Filtration->Metering->Spinning->Air drawing->Web forming->Thermal calendaring->straining->Rolling up->Cutting and packing.(as per attach design) |
 |
| Main Technical Parameter : |
| Specification |
KH-1600 |
KH-2400 |
KH-3200 |
| Dies Quantity |
SS : 2 sets S:1 set |
| Effective Width (mm) |
1600 |
2400 |
3200 |
| Weight Proportion (g/m2) |
12-200 gm2 |
| Rated Line Speed (m/min) |
SS : 200-300 |
| S : 150 |
| Production Capacity (T/Y) |
SS : 3000-3900 |
SS : 4500-5850 |
SS : 6000-7800 |
| S : 1500-1950 |
S : 2250-2925 |
S : 3000-3900 |
| FIBER NUMBER |
2D-4D |
|
|
|
|
