| Performance : |

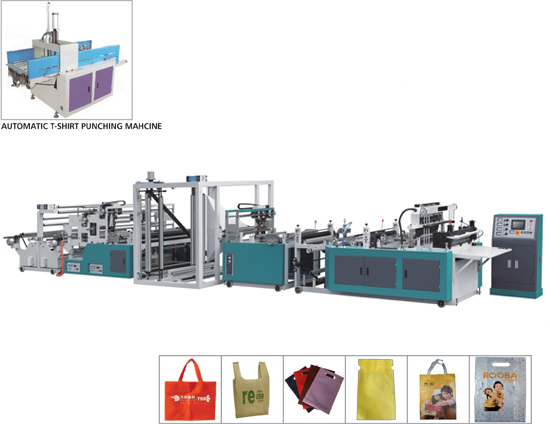

| This is a Multi-functional non woven bag making machine. This machine can produce non woven bags of the various size and shapes such as T-shirt Bag, Flat Bag (D-cut bag), Shoes Bags, Handle Bags and other Products Packaging Bags. |
| |
| Features : |
- The machine is controlled by micro-computer,and it adopts stepping motor to feed materials.
- The machine fixes the length at random and has accurate and stable photoelectric tracking, if any missing bags, it will stop running automatically.
- It has automatic air pressure punching, automatic constant temperature and automatic stop when the materials are irregular working.
- It can automatic counter and set the counting alarm.
- The material feeding is controlled by photo-electricity and it can be rectified the deviation automatically.
- The bottom of bag is welded in roll-type by ultrasonic to ensure the secure and steady.
|
| |
| Main Technical Parameter : |
| TYPE |
KH - A600 |
KH - A700 |
KH - A800 |
| Production speed |
40-100pcs/min |
40-100pcs/min |
40-100pcs/min |
| Bag width |
100-900mm |
100-900mm |
100-900mm |
| Bag length |
200-480mm |
200-580mm |
200-680mm |
| Non Woven fabric specification(G.S.M) |
30-100gsm |
30-100gsm |
30-100gsm |
| Power supply |
380V/220v |
380V/220v |
380V/220v |
| Total power |
11KW |
13KW |
15KW |
| Overall size |
7600×1650×1800mm |
7800×1750×1800mm |
8000×1850×2000 mm |
|
| We will no longer inform you if there is any data change |
